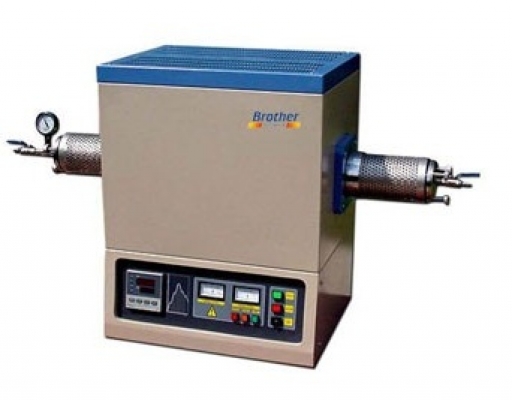

Model

XY-1600MT

Furnace construction

• XY-1600 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace );
• Double layers steel casing with fan cooling, to ensure the surface of furnace below 50 oC.
• 99.5% high purity alumina tube as furnace tube, total length 1000mm

Chamber Size

• Dia40x300mm; dia40x450mm (OD40mm, ID30mm, Heated zone 300mm or 450mm length, quartz tube length 1000mm)
• Dia60x300mm; dia60x450mm (OD60mm, ID50mm, Heated zone 300 or 450mm length, quartz tube length 1000mm).
• Dia80x300mm; dia80x450mm (OD80mm, ID70mm, Heated zone 300 or 450mm length, quartz tube length 1000mm).

Power

4KW ~8KW

Voltage

AC 220V 50/60 Hz (please tell us when your place order.)

Max. Temperature

1600 °C  (< 2 hour)

Continuous work temp.

1500 °C

Max. Heating Rate

30 °C /min

Temperature controller

• PID automatic control and auto-tune function.
• 51 programmable segments for precise control.
• Built in protection for over-heated and broken Thermal couple.
• Larger digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Heating Element

U type SiC heating elements

Thermal Couple

B  type

Outer Dimension

590X480X710mm

Gross weight with package

180 Kgs~280kgs

Software to control furnace through computer
(if you need, additional order)

Communication module installed in temperature controller

Software –TCS(Temperature Control System, available for Win2003, Win XP)

One USB cable, one RS485 Serial interface.

Warranty

24 months limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)

Certificate

CE certified
