SP0701.10 : Cảm biến mức - Chênh áp - 3051S Rosemount
Thông số chính :
Cảm biến đo mức - Đồng hồ đo mức - Level sensor - Level Indicator :
Cảm biến mức - Chênh áp - 3051S Rosemount

Rosemount 3051S Electronic Remote Sensor
Differential Pressure is calculated using two gage / absolute pressure sensors
Differential Pressure: ±0.035% of DP Span
Gage / Absolute Pressure: ±0.025% of Calibrated Sensor Span
4-20 mA with HART (revision 6)
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : ROSEMOUNT
Model : Rosemount 3051S Electronic Remote Sensors
Chất lượng : Bảo hành 18 tháng
 Catalog Video

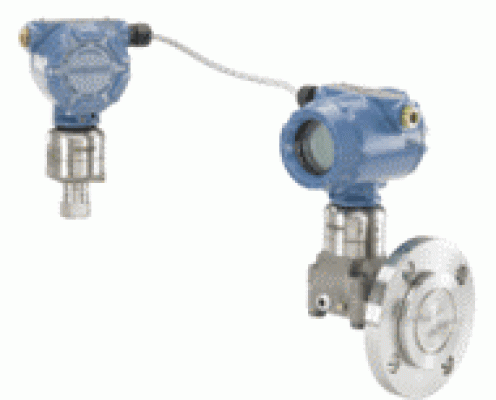

Rosemount 3051S Electronic Remote Sensors

The Rosemount 3051S ERS™ System is an industry-first technology that replaces mechanical impulse piping with two 3051S pressure sensors linked together digitally.  Differential Pressure is calculated in one of the two sensors and is transmitted using a standard two-wire 4-20 mA HART signal.


The unique digital architecture of the Electronic Remote Sensor technology:



Product

Rosemount 3051S Electronic Remote Sensors

Measurement Principle

Differential Pressure is calculated using two gage / absolute pressure sensors

Transmitter Models

3051SAM, 3051SAL

Process Connections

3051SAM: Flanges, NPT, Instrument Manifolds, 1199 Seals
3051SAL: Flanged, Threaded, and Hygienic direct-mount seals

Output

4-20 mA with HART (revision 6)

Measurement Span

Up to 100 feet (31 meters)

Variables

Differential Pressure
PHI and PLO Pressure
PHI and PLO Sensor Module Temperature
Scaled Variable (up to 20 points)

Reference Accuracy

Differential Pressure: ±0.035% of DP Span
Gage / Absolute Pressure: ±0.025% of Calibrated Sensor Span

Long Term Stability

10-year stability

Warranty

12-year limited warranty

Complete Specifications (pdf @ 4590 Kb)



Electronic Remote Sensor technology has been used with great success in all industries in a variety of applications and conditions including:

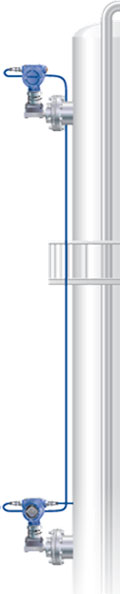

Tall Vessels
Measurement drift, caused by changes in ambient temperature, is magnified by long lengths of impulse piping and capillary that are normally required on tall vessels. The 3051S ERS System eliminates these mechanical components, resulting in a stable and repeatable measurement.

Distillation Towers
The 3051S ERS System provides an accurate DP measurement for a reliable indication on the health of filters, trays, and packing.  Additional MultiVariable measurements and diagnostics enable proactive maintenance practices to prevent flooding and other dangerous process conditions.

Cold-Weather Installations
Installations in cold-weather climates often require  steam or electrical heat-tracing, insulation, and other complicated practices.  The digital architecture of the 3051S ERS System eliminates these practices, enabling simplified installations with reduced maintenance


Additional Application Successes
