SP1001.02 : Đồng hồ lưu lượng siêu âm gắn tường | Cắm | DMTFC
Thông số chính :
Đồng hồ lưu lượng sóng siêu âm gắn tường | Cảm biến cắm vào đường ống | DMTFC | wall-mount Insertion Transit Time | DYNAMETERS | Flowmeter

CTCP GIẢI PHÁP CÔNG NGHIỆP | Chế tạo thiết bị | Máy móc | Dây chuyền | Thiết bị sấy | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) SIEMENS ( Đức )
Hãng cung cấp : DYNAMETERS
Model : DMTFC
Chất lượng : Bảo hành 18 tháng
 Catalog Video

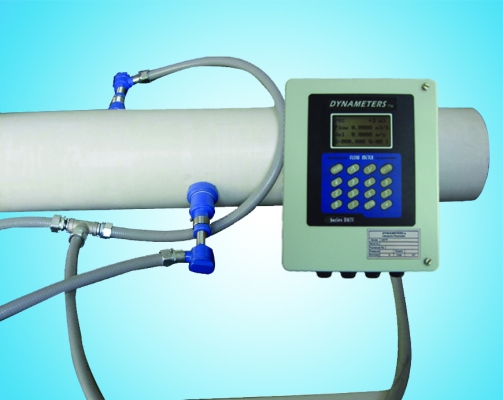

 Series DMTFC wall-mount Insertion Transit Time Ultrasonic Flow Meters

Features:

1.      Hot-tapped installation, no pipe line flow interrupted.

2.      Internally configured batch controller makes batch control convenient and accurate.

3.      Spool-piece transducer for best accuracy (better than ±1.0% read) and better long-term stability.

4.      No moving parts, no pressure drop, no maintenance.

5.      Wide bi-directional Flow range of 0 to 40 ft/s (0 to 12 m/s), totalizer for net, positive and negative flow display.One meter suitable for a wide range of pipe sizes from DN65 to DN4500(mm).

6.      Signal quality tracking and self-adjusting functions.

7.      Available with extended insertion transducers for cement pipe line, wall thickness less than 100mm permitted.

8.      Up to 8GB SD card data logger optional, can memory flow rate, total flow, velocity and time. Time interval can be freely setup by user.

9.      Insertion transducers are suitable for high temperature of -40℃~150℃.
