SP1404.17 : Asphalt Flow Meter - COWELL
Thông số chính :
Asphalt Flow Meter - COWELL
Model : Target Mode
Chất lượng : Bảo hành 18 tháng
 Catalog Video

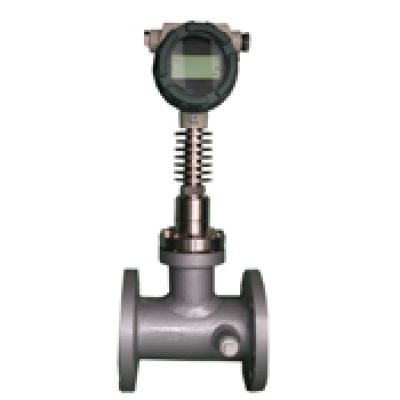

Asphalt Flow Meter
Target Mode Asphalt Flow Meter is double-jacketed with heat conduction unit. It is typically to meausre the flow of bitumen or asphalt. The flow meters are applicable to the following ranges that the diameter from Φ15 to Φ2000mm or bigger, the temperature from -196
to +450. The pressure from 0 to 42Mpa.
Characteristics of Asphalt Flow Meter:
1. Measurement flow of bitumen or asphalt.
2. Total quantity measurement accuracy is not less than 0.2%.
3. High sensitivity, able to measure very low velocity below 0.8m/s.
4. No movable part, safe and reliable.
5. Wide measure range, bigger than 1:30.
6. Good repeatability, generally 0.1
0.08% , fast to measure.
7. Small pressure loss, only about 1/2
P of Standard Hole Board.
8. Able to adopt hang weight method to test the flow meter.
9. Measurement range can be changed by replacing target according to need.
10. LCD display.
11. 4-20mA, 0-10V, impulse, and RS485 outputs.
12. Easy installation and maintain.
Application of Asphalt Flow Meter:
Turbine flow meter is a velocity-type flow measurement instrumentation for the measurement of the pipeline is full of closed continuous flow of liquid volume flow. Products are widely used in petrochemical, metallurgy, scientific research, food and other industries.
Industries:
Steam / electricity / steel / petrochemical / water / food / industrial ga.
