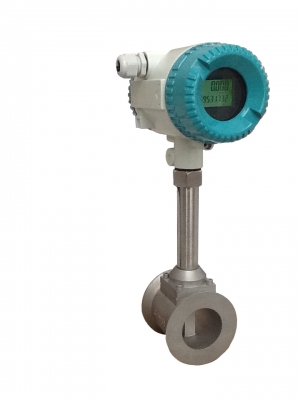

SP0511.03 : Đồng hồ đo lưu lượng Nước | Gas | Khí | Hơi | Vortex | LUGB
Thông số chính :
Đồng hồ đo lưu lượng Nước | Gas | Khí | Hơi | Vortex | LUGB | Kết nối đường ống dạng kẹp | Không bù nhiệt độ | áp suất
Hiển thị LCD | 4-20mA | Cấp chính xác : 1.0, 1.5 | DN25 - DN300 | Flowmeter

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống bơm định lượng | Cân định lượng | Hệ thống đo lưu lượng các loại môi chất : Dầu | Xăng | Khí | Gas | Hơi | Nước | Hóa chất | Cồn | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : SURE Instrument
Model : LUGB
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Parameter of vortex flow meter

Measured
Mediums

Liquids, Gases and Steams
(NOTE: the mediums should be unidirectional
or can be seen as unidirectional.)

When the dryness of saturated steams ≥ 85
, they can be seen as unidirectional.

Temperature
of Mediums

- 40°C ~ + 350°C

Pressure
of Mediums

1.6MPa, 2.5MPa, 4.0 MPa

Accuracy

1.0; 1.5

Span Rate

1:8 ~ 1:30
(compared with the standard atmospheric pressure)

1:8 ~ 1:40
( compared with the nominal temperature water)

Flow Range

Liquids: 0.4 ~ 7.0 m/s

Gases: 4.0 ~ 60.0 m/s

Steams: 5.0 ~ 70.0 m/s

Nominal Diameter

DN 25, 40, 50, 65, 80, 100, 125, 150, 200, 250,300 mm

Materials

1Cr18Ni9Ti

Reynolds No.

Normally, 2*104 ~ 7*106

Resistance
Coefficient

Cd ≤ 2.6

Licensed Vibration
Acceleration

LUGB type ≤ 0.2g

Class of Protection

IP65

Class of
Explosion-Proof

Intrinsically Safe Explosion-Proof: Exia II CT2 ~ CT6

Explosion Suppression: Exid II CT4

Conditions
of Surroundings

Temperature of
Surroundings:

Non-Explosion Proof
Surroundings : - 40°C~ +55°C

Explosion-Proof
Surroundings : - 20°C~ +55°C

Relative Humidity:

≤ 85%

Atmospheric Pressure:

86 ~ 106 kPa

Power Supply

Non-Explosion
Proof
Type

Pulse
type:

+12 VDC
Output : 4~20mA

Current
type:

+24 VDC
Output : 4~20mA

Explosion
- Proof Type

Current
type:

+24 VDC
Output : 4~20mA )

Output Signal

Frequency pulse signal 2~3000Hz,
low level voltage ≤1V, high level voltage ≥ 6V

Two-wire system 4 ~ 20mA
Signal (isolation output), load ≤ 500Ω.



Measure range of vortex flow meter

Diameter (mm)

Water

Gases in the Normal
Temperature and Pressure

Range of Standard Measurement
(m3/h)

Range of Standard
Measurement
(m3/h)

  25

  2 ~ 16

  8~60

  32

  1.5~15

  14~100

  40

  3~30

  18~180

  50

  4~40

  30~300

  65

  6~60

  50~500

  80

  13~130

  70~700

  100

  20~200

  100~1000

  125

  36~360

  150~1500

  150

  50~500

  200~2000

  200

  100~1000

  400~4000

  250

  150~1500

  600~6000

  300

  200~2000

  1000~10000
