SP0611.01 : Cảm biến áp suất đa biến - 3051S Rosemount.
Thông số chính :
Cảm biến áp suất - Đồng hồ áp suất - 3051S Rosemount- Pressure sensor - Pressure Transmitter :
Cảm biến áp suất đa biến.

Flow: ±0.65% Flow Accuracy over 14:1 Flow Turndown
Differential Pressure: ±0.04% of DP Reading and 200:1 DP Turndown
Absolute & Gage Pressure: ±0.25% of Span and 200:1 Rangedown
Process Temperature RTD Interface: ±0.67 ºF (0.37 ºC) - Sensor Matching enabled by Callendar-Van Dusen constants
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : ROSEMOUNT

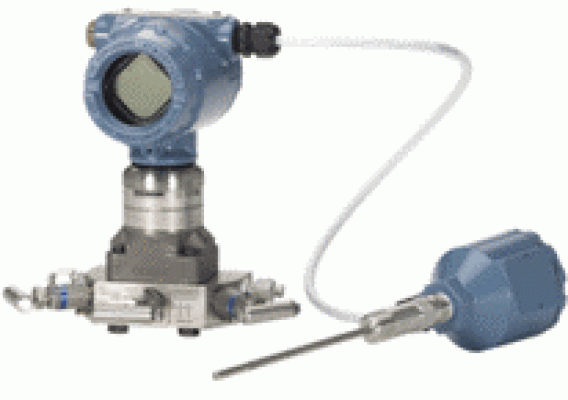

Model : Rosemount 3051S MultiVariable™ Transmitter
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Rosemount 3051S MultiVariable™ TransmitterAchieve unprecedented flow performance, including enhanced energy management, with the Rosemount 3051S MultiVariable Mass and Energy Flow offering.  The 3051S MultiVariable transmitter provides Differential Pressure, Static Pressure, and Process Temperature measurements along with advanced compensation techniques to provide faster and more accurate calculations.  Configuration is completed with Engineering Assistant™ 6.1.1 software which provides an easy, three-step process that eliminates guesswork.

When the 3051S MultiVariable is combined with an industry leading Rosemount primary element as an integrated flowmeter, the result is effortless flow optimization for tighter control, increased environmental protection, improved productivity and reduced material costs

Measurement Type

MultiVariable Measurement

Output

HART®

Reference Accuracy

Flow: ±0.65% Flow Accuracy over 14:1 Flow Turndown
Differential Pressure: ±0.04% of DP Reading and 200:1 DP Turndown
Absolute & Gage Pressure: ±0.25% of Span and 200:1 Rangedown
Process Temperature RTD Interface: ±0.67 ºF (0.37 ºC) - Sensor Matching enabled by Callendar-Van Dusen constants

Long Term Stability

10-year stability

Warranty

12-year limited warranty

Varialbles

Mass, Volumetric, and Energy Flow
Totalized Flow
Differential Pressure
Static Pressure (Gage and Absolute)
Process Temperature

Available
Calculation Types

Fully Compensated Mass and Energy Flow
Direct Process Variable Output

Available
Measurement
Combinations

Differential Pressure, Static Pressure, Process Temperature
Differential Pressure and Static Pressure
Differential Pressure and Process Temperature
Differential Pressure

Configuration
Software

3051SMV Engineering Assistant 6.1

Complete Specifications (PDF@310Kb)
