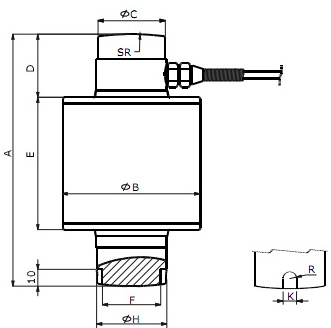

CAP./SIZE

A

B

C

D

E

F

H

K

SR

10~30t

150

82

40

38

82

34.7

41.7

8

150

40~60t

170

88

53

47

95

43

53

10

200

Item Parameter

C3

Unit

Rated load (Emax):

10,20,30,40,50,60

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

( Vmin):

0.01

% of rated load

Rated output (Cn):

30,000 or 100,000

d

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Measuring rate A/D:

50/25

/Sec

Baudrate:

9600/19200

Bps

Filter mode 1:

3~0.05(Low pass filter)

HZ

Filter mode 0:

8~3(Low pass filter)

HZ

Maxium transmission distance:

1200

m

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

24

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
