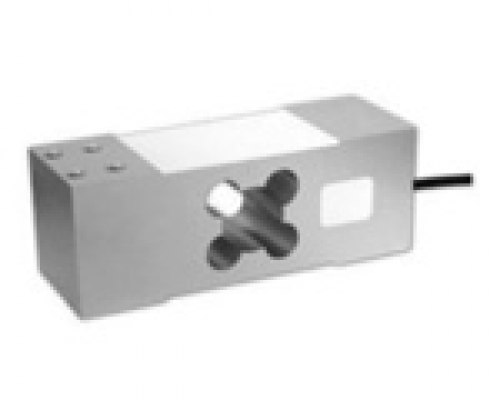

SP0806.07 : BA629 | Cảm biến lực | Cân điện tử | KELI | ZEMIC
Thông số chính :
Cảm biến lực | Cân điện tử | BA629 | KELI | ZEMIC
Cảm biến trọng lượng | Cảm biến lực | BA629 | Single point loadcell:

Cảm biến trọng lượng | Cảm biến lực | Loadcell | Cân điện tử | Bộ chỉ thị số | Đầu cân | Cân băng tải | Cân ô tô | Cân đóng bao | Phụ kiện /.

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống pha trộn | Cân định lượng | Cân đóng bao | Hóa chất | Thực phẩm | Bột | .. | Hệ thống bơm định lượng | Đo lưu lượng các chất Dầu | Xăng | Cồn | Khí | Gas | Hơi | Nước | Hóa chất | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : KELI | ZEMIC | BENUI
Model : BA629
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Execution standard:
GB/T 7551-2008 Certificate
(eqv OIML R60)
Combined error : 0.015%

Sealed to IEC 529:
Protection grade: IP66. Enclusure is immersed in water in its service position for 30min.
Lowest point of enclosure less than 850mm tall=1000mm below surface of water.
Highest point of enclosure more than 850mm tall=150mm below surface of water.

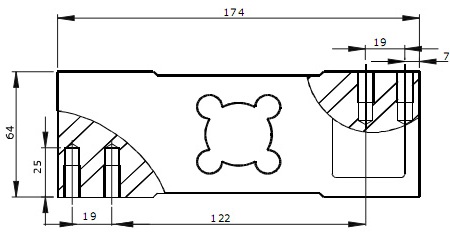

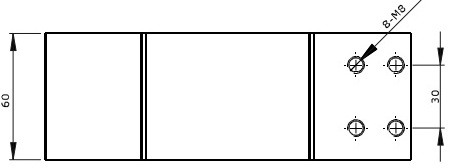

Dimensions

(In mm. 1mm = 0.03937 inches)




Circuit Diagram:

Electrical Termination
4 Core cable standard lengths:3m.
Diameter: Φ4.2

Connection

Refer to the following drawing:

Notice: Do not change the length of cable, or lese, it will effect the sensitivity of loadcell.

Specification



Item Parameter

C3

Unit

Rated load (Emax):

50~700

kg

Maximal numbers of load cell verification
Intervals (Nlc):

3000

d

Minimum load cell verification intervals

Intervals ( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.5%

mV/V

Combined error:

0.015

±% of rated output

Temperature effect on sensitivity(Tkc):

0.002

±% of rated output/

Temperature effect on zero balance(Tk0):

0.001

±% of rated output/

Zero balance:

1.0

±% of rated output

Input resistance(Rlc):

385±15

Ω(Ohms)

Output resistance(Ro):

350±3

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-10~+40/14~+104

/ °F

Recommend excitation:

8~12

V( DC or AC)

Maximum excitation:

18

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
