SP0705.02 : BRN-M | Cảm biến lực | Cân điện tử | KELI | ZEMIC
Thông số chính :
Cảm biến lực | Cân điện tử | BRN - M | KELI | ZEMIC
Cảm biến trọng lượng | Cảm biến lực | Loadcell :

Cảm biến trọng lượng | Cảm biến lực | Loadcell | Cân điện tử | Bộ chỉ thị số | Đầu cân | Cân băng tải | Cân ô tô | Cân đóng bao | Phụ kiện /.

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống pha trộn | Cân định lượng | Cân đóng bao | Hóa chất | Thực phẩm | Bột | .. | Hệ thống bơm định lượng | Đo lưu lượng các chất Dầu | Xăng | Cồn | Khí | Gas | Hơi | Nước | Hóa chất | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : KELI | ZEMIC | BENUI
Model : BRN-M
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Execution standard:
GB/T 7551-1997 Certificate
(eqv OIML R60)
Combined error: 0.015%

Sealed to IEC 529:
Protection grade: IP67 or IP68.
Protection against total immersion in water for 30 minutes at a pressure corresponding to a 1 m head of water.

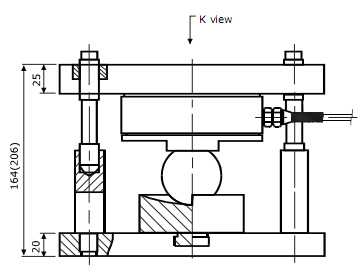

Dimensions

(In mm. 1mm = 0.03937 inches)

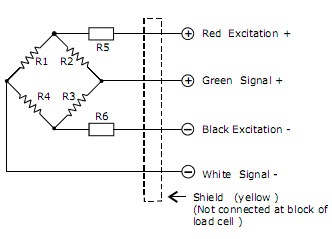

Circuit Diagram:

Electrical Termination
4 Core cable standard lengths:
<=30t: 12.0 m, >=40t: 18m
Diameter: Φ6
Connection:
Refer to the following drawing:

Notice: Do not change the length of cable, or lese, it will effect the sensitivity of loadcell.

Specification

Item Parameter

C3

Unit

Rated load (Emax):

25,30,40,50,60

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

1550±5

Ω(Ohms)

Output resistance(Ro):

1402±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

/ °F

Recommend excitation:

8~24

V( DC or AC)

Maximum excitation:

48

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
