SP0605.10 : PT124B-126 | PT124B-126T | Cảm biến áp suất | ZHYQ
Thông số chính :
PT124B-126 | PT124B-126T | Cảm biến áp suất và nhiệt độ | ZHYQ | Pressure sensor | Pressure Transmitter | Melt PT | Flexible armor melt pressure transmitter with flange

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : ZHYQ
Model : PT124B -126/126T
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Features :
Special configuration design, high accuracy and stability

This PT124B series are suitable for the pressure measuring and controlling in the high temperature liquid medium of the rubber plastic, chemical fibre, steam and etc.

Specifications :

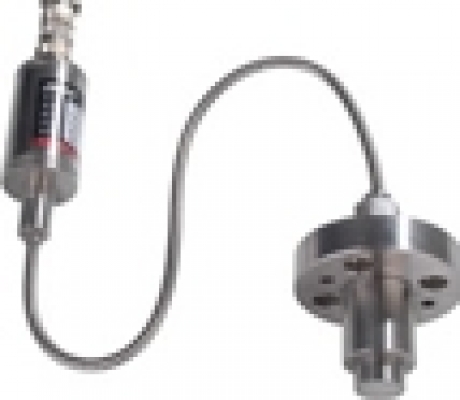

Flexible armor melt pressure transmitter with flange

Ranges

0 ~ 5Mpa~0 ~ 150Mpa

Overload pressure 150%FS

Combined accuracy

0.5%FS 1%FS

Output signal

4 ~ 20mA; 0 ~ 5V; 0 ~ 10V; 2mV/V ; 3.33mV/V

Excitation

24Vdc (12~36Vdc)

Diaphragm temp

550 Deg C

Thermocouple

JKE; PT100 ( PT124B-126T )

Explosion protection Exia II CT4

Standard Wetted Parts

TiN coated  15-5PH SST;Inconel 718

Process Connection

Flange mounting

Mounting
