SP0601.02 : PT124B-213 | Cảm biến áp suất | 4-20mA | ZHYQ
Thông số chính :

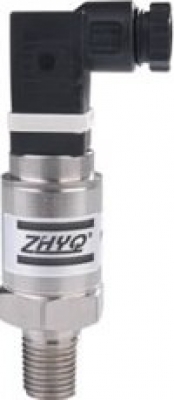

PT124B-213 | Cảm biến áp suất | 4-20mA | ZHYQ | Pressure sensor | Pressure Transmitter :

PT124B -213 adopts ceramic or diffused silicon sensor chip, with stainless steel
Range : 0……1 ~ 0……..1600bar
Accuracy : 0.25%FS, 0.5%FS ; 1%FS
Output : 4~20 mA , 0~5V;0~10V; 2mV/V;3.3 mV/V
Power supply : Amplified circuit output:24(12~36V)DC, mV output:10(6~12V)DC

Thiết kế | Chế tạo thiết bị | Máy móc | Dây chuyền | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) | SIEMENS ( Đức )
Hãng cung cấp : ZHYQ
Model : PT124B -213
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Features :
PT124B -213 adopts ceramic or diffused silicon sensor chip, with stainless steel encapsulation, smart figure. This series is especially suitable in the occasion where Installation space is restricted and has the feature of wide range temperature compensation, high accuracy, non-calibration, wide range, and OEM Process. This model has wide application in hydraulic pressure, auto-controlling house, constant pressure water supply, loading machine ,and liquid pressure measuring and controlling in automatization fields.

Application :
Mechanical Engineering Industry | Hydraulic and level measurement | Mechanical Engineering Industry | Mechanical Engineering Industry
Hydraulic and level measurement | Gas tank pressure monitoring | Industrial test and control | General industrial applicastions

Specifications :

Flush diaphragm pressure transmitter

Ranges

0……1 ~ 0……..1600bar

Overload pressure

150%FS

Combined accuracy

0.5%FS 1%FS

Output signal

4~20 mA , 0~5V; 0~10V; 2mV/V; 3.3 mV/V

Excitation

24Vdc (12~36Vdc)

Working Temp

-40  - 80C

Electric Connection

Hirschman, direct down-lead, Bendix connector and etc.

Standard Wetted Parts

TiN coated  15-5PH SST;Inconel 718

Process Connection

G1/4; 1/4NPT; G1/8;M14×1.5; M20×1.5, Special design
