SP05.02 : Bơm ly tâm - AMP
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : EASTPUMP
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video




Applications

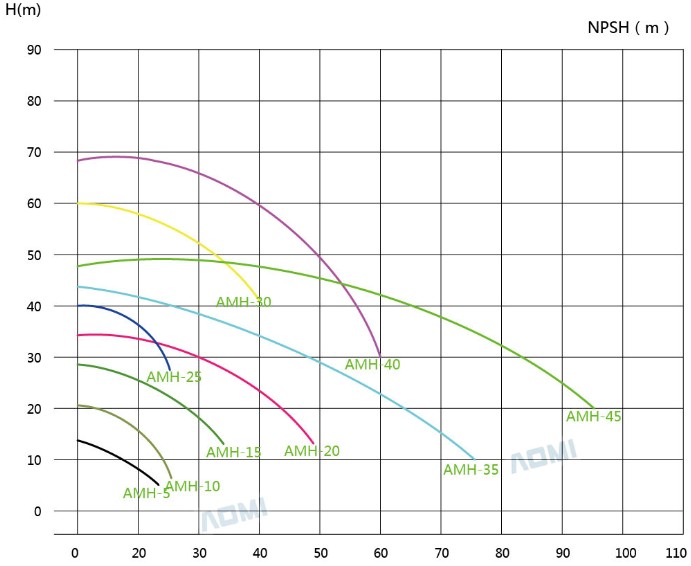

The AMH pump is a highly efficient and economical centrifugal pump, which meets the requirements of sanitary and gentle product treatment and chemical resistance. AMH is available in nine Sizes, AMH-5, -10, -15, -20, -25, -30, -35, -40, -45.

Standard design

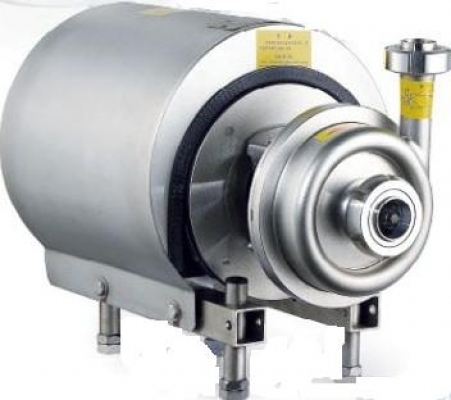

The AMH pump consists of a standard motor, stub shaft, mechanical compression coupling (AMH-5 with pin bolts), adaptor, back plate, impeller, pump casing and shaft seal. The AMH pump is designed for CIP with emphasis on large internal roundings and cleanable seals. The sanitary version of AMH has a stainless steel shroud for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs


Shaft seals

The AMH pump is equipped with either an external single or a flushed shaft seal. Both have stationary seal rings in acid resistant steel AISI 316L with sealing surface in silicon carbide and rotating seal rings in carbon. The secondary seal of the flushed seal is a long lasting lip seal. The pump may also be equipped with a double mechanical shaft seal



Technical data

Max. inlet pressure

4bar

Max. outlet pressure

6.5bar

Temperature range

-20~+135(EPDM)

Noise level (at 1 m)

60-85dBA
